Installing Traefik reverse proxy on a VPS

Note
Some screenshots show the backend of our sister company dogado. However, the steps shown can also be carried out in the easyname backend.

Overview

• System used: Debian 11 64-bit
• User account: I am performing all steps as ‘root’
• Duration: approx. 20–30 minutes. However, it may take longer for the DNS settings to take effect
• Difficulty: Easy. Just copy the code?
• Special notes:
  • Ports 80 and 443 must be free. No other services may be running on them.

1. Installing Traefik v2

1.1 Introduction

Normally, ports 80 (HTTP) and 443 (HTTPS) would be occupied by a service, and you would need to purchase a second server (VPS). Traefik therefore allows many services, such as email, cloud storage and video conferencing, to be run on a single server. A further advantage is that all connections running via Traefik are subsequently secured using HTTPS.

Traefik is open-source and free in its basic version. This guide is based on this version. However, there is also an Enterprise version, which, for example, offers more options for scaling across multiple Traefik servers.

1.2 Preparation

This guide is based on the current Debian 11 operating system. We will set up Traefik using Docker. This will allow us to perform very quick updates later on, as well as easily integrate new services.

1.2.1 Installing Docker

So, first we’ll install Docker and Docker Compose. To do this, enter the following in the console:

We have now installed and configured everything we need for Docker. We can now install it very easily.

apt-get update

apt-get install docker-ce docker-ce-cli containerd.io docker-compose-plugin

Now let’s check the installed version. To do this, simply enter the following command:

docker --version && docker-compose version

1.2.2 Installing htpasswd

We need this programme to generate a secure password for our Traefik login. To install it, enter the following:

1.2.4 Creating the required files and directories

Now we’ll create the directory where Traefik will be installed later. To do this, enter the following command. You can, of course, change the directory. In this guide, I’ll always be working with this directory. You’ll need to take this into account accordingly.

mkdir -p /opt/containers/traefik

Next, we’ll create some files within this directory that will later store certificates for us.

1.2.5 Information about YML files

With YML files, it is very important that all lines are correctly indented. Lines MUST always be indented using the space bar. They must NOT contain any tabs. You can always have the following code ‘checked’ online. Most errors are caused by incorrect formatting. One service for checking this is, for example: https://codebeautify.org/yaml-validator

1.3 Creating dynamic_conf.yml

This file specifies which parameters should be used for the ‘secure connection’ via HTTPS. We want a very good rating (A+) from SSL Labs. SSL Labs is a website for testing the security of your own website.

I always use ‘nano’ as my editor. You can install it using the following command

apt-get install nano

You can also use any other editor.

Now enter the following code into your console:

Now copy the following into the file:

tls:

  options:

    default:

      minVersion: VersionTLS12

      cipherSuites:

        - TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256

        - TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384

        - TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305

        - TLS_AES_128_GCM_SHA256

        - TLS_AES_256_GCM_SHA384

        - TLS_CHACHA20_POLY1305_SHA256

      curvePreferences:

        - CurveP521

        - CurveP384

      sniStrict: true

http:

  middlewares:

    secHeaders:

      headers:

        browserXssFilter: true

        contentTypeNosniff: true

        frameDeny: true

        sslRedirect: true

        #HSTS Configuration

        stsIncludeSubdomains: true

        stsPreload: true

        stsSeconds: 31536000

        customFrameOptionsValue: "SAMEORIGIN"

1.4 Customise traefik.yml

In this step, we create an empty file, into which we will then enter some settings.

Now copy the following into this file:

api:

  dashboard: true

entryPoints:

  http:

    address: ":80"

  https:

    address: ":443"

providers:

  docker:

    endpoint: "unix:///var/run/docker.sock"

    exposedByDefault: false

  file:

    filename: "./dynamic_conf.yml"

certificatesResolvers:

  http:

    acme:

      email: email@example.com   #### enter your email address here ####

      storage: acme.json

      httpChallenge:

        entryPoint: http

You now need to enter your email address under ‘Email’. This is required for Let’s Encrypt. This is a free online service that provides you with valid HTTPS certificates (‘secure connection’).

1.5 Customise docker-compose.yml

Now we can begin the actual “installation” of Traefik. To do this, open the following file:

Now copy the following code into the file. This code is, so to speak, the blueprint for our Traefik container.

version: '3'

services:

  traefik:

    image: traefik:latest

    container_name: traefik

    restart: unless-stopped

    security_opt:

      - no-new-privileges:true

    networks:

      - proxy

    ports:

      - 80:80

      - 443:443

    volumes:

      - /etc/localtime:/etc/localtime:ro

      - /var/run/docker.sock:/var/run/docker.sock:ro

      - ./data/traefik.yml:/traefik.yml:ro

      - ./data/acme.json:/acme.json

      - ./data/dynamic_conf.yml:/dynamic_conf.yml

    labels:

      - "traefik.enable=true"

      - "traefik.http.routers.traefik.entrypoints=http"

      - "traefik.http.routers.traefik.rule=Host(`traefik.example.com`)"

      - "traefik.http.middlewares.traefik-auth.basicauth.users=USER:PASSWORD"

      - "traefik.http.middlewares.traefik-https-redirect.redirectscheme.scheme=https"

      - "traefik.http.routers.traefik.middlewares=traefik-https-redirect"

      - "traefik.http.routers.traefik-secure.entrypoints=https"

      - "traefik.http.routers.traefik-secure.rule=Host(`traefik.example.com`)"

      - "traefik.http.routers.traefik-secure.tls=true"

      - "traefik.http.routers.traefik-secure.tls.certresolver=http"

      - "traefik.http.routers.traefik-secure.service=api@internal"

      - "providers.file.filename=/dynamic_conf.yml"

      - "traefik.http.routers.traefik-secure.middlewares=secHeaders@file,traefik-auth"

networks:

  proxy:

    external: true

Now save the file and close your editor. We will now generate a username and password and then update the file with these details.

To generate a username and password, enter the following command:

Here, you should replace “user” and “password” with your own username and password. It might look something like this:

echo $(htpasswd -nb dogado 'secret123') | sed -e s/\\$/\\$\\$/g

You should now see an output that looks something like this:

Output: dogado:$$apr1$$6SCsKdSF$$NrWj6Usie0LpPAIEj8H3Y0

Now copy this string and open our docker-compose file again.

Now paste your copied code here:

before:

"traefik.http.middlewares.traefik-auth.basicauth.users=USER:PASSWORD"

after:

You’ll also need to change the hostname. This is the name that Traefik will be accessible under later on.

Before:

 - "traefik.http.routers.traefik.rule=Host(`traefik.example.com`)"

      - "traefik.http.routers.traefik-secure.rule=Host(`traefik.example.com`)"

After:

We’re almost done now.

1.6 Creating a Docker network

Finally, we just need to create a Docker network. This will be used later for the individual containers to communicate with Traefik. I’m calling this network “proxy”. You can use any other name, though. You’ll just need to adjust the instructions accordingly later on. To do this, enter the following code:

docker network create proxy

We’ve now got everything ready for the first start-up.

1.7 Uninstalling Apache2

The Debian 11 image we’re using already has an Apache2 server pre-installed. We’ll uninstall this, as we need ports 80 and 443 for Traefik. We’ll host all our websites via containers later on. To uninstall Apache2, enter the following:

2. Configure DNS settings

To ensure we can easily create subdomains in Traefik later (e.g. mail.yourdomain.com, cloud.yourdomain.com), we need to adjust the DNS settings.

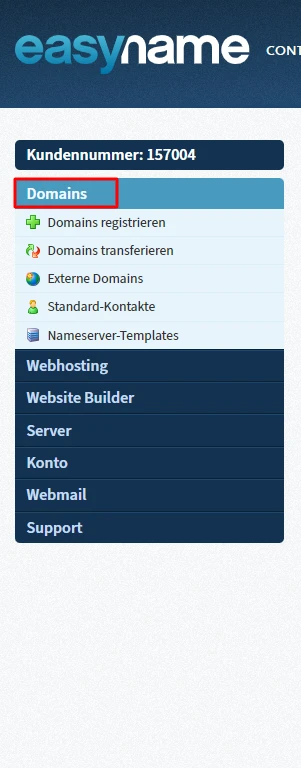

To do this, log in to your customer account at easyname.at. Now click on Domains

Then click on the pencil icon next to your domain to edit it

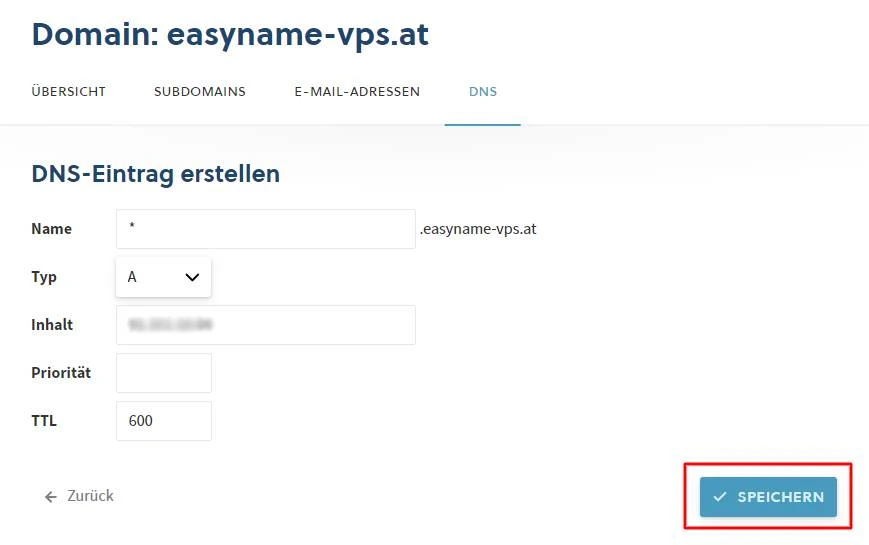

Now select ‘DNS’. Then click on ‘Add DNS record’.

Now enter ‘*’ in the Name field and your server’s IP address in the Content field.

Then click on ‘Save’.

It may take several hours for these settings to be applied globally and become active.

3. Start Traefik

Now enter the following to start your Traefik container:

docker compose -f /opt/containers/traefik/docker-compose.yml up -d

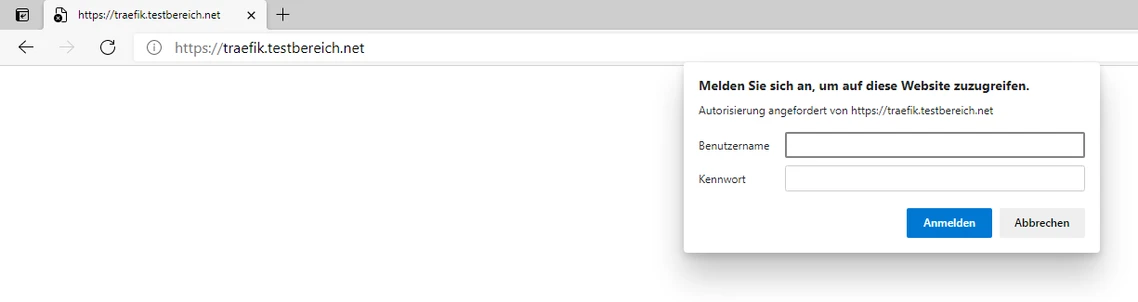

Now go to your website in your web browser (e.g. traefik.yourdomain.com). After a few seconds, you should see the following:

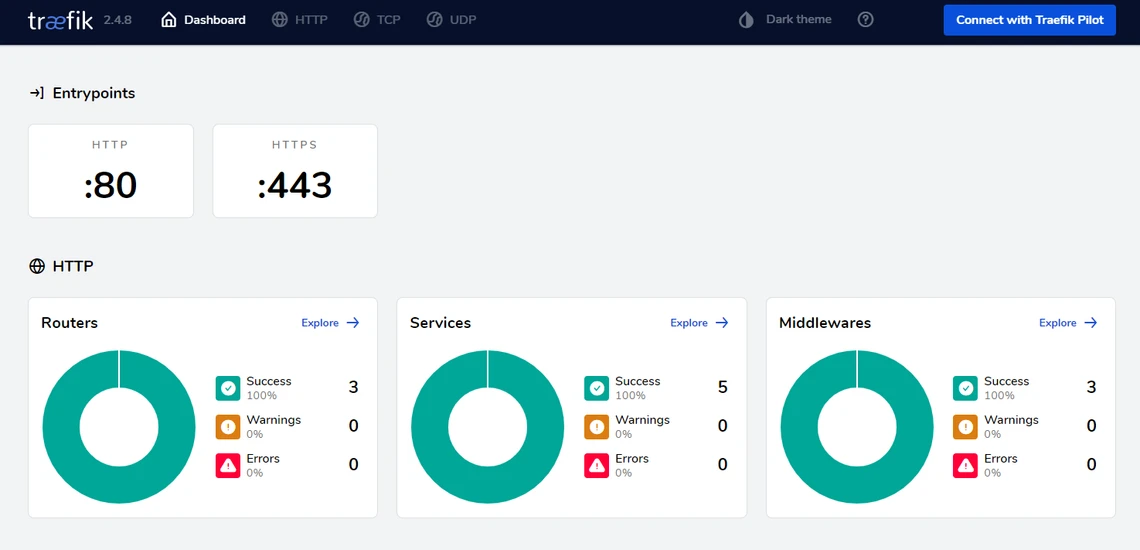

Once you've logged in using the account details you've just created, it should look something like this.

4. Test the website's security

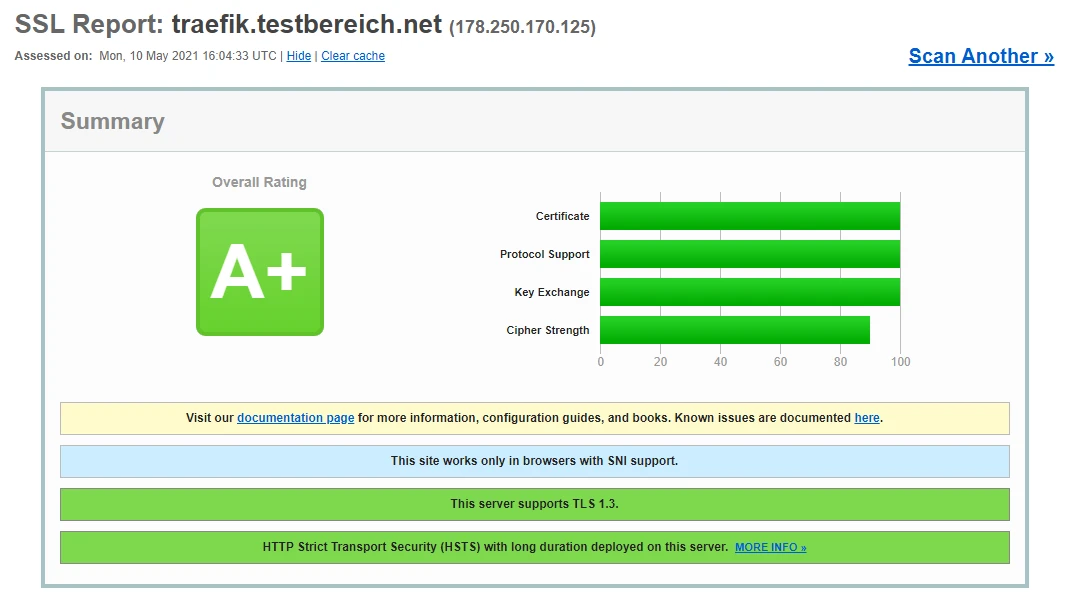

Now let’s go to the following website and see if we get the desired A+ rating: https://www.ssllabs.com/ssltest/

Enter your website here (e.g. traefik.yourdomain.com). It should now look like this:
